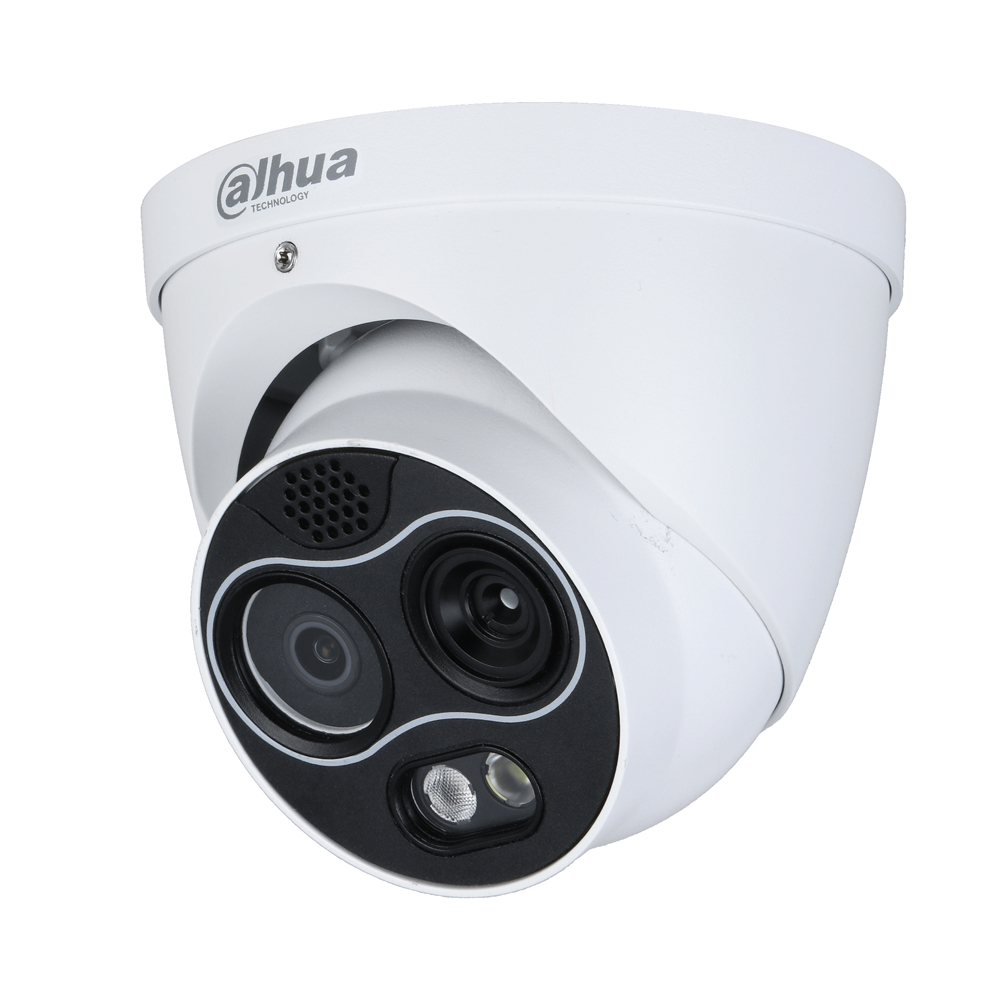

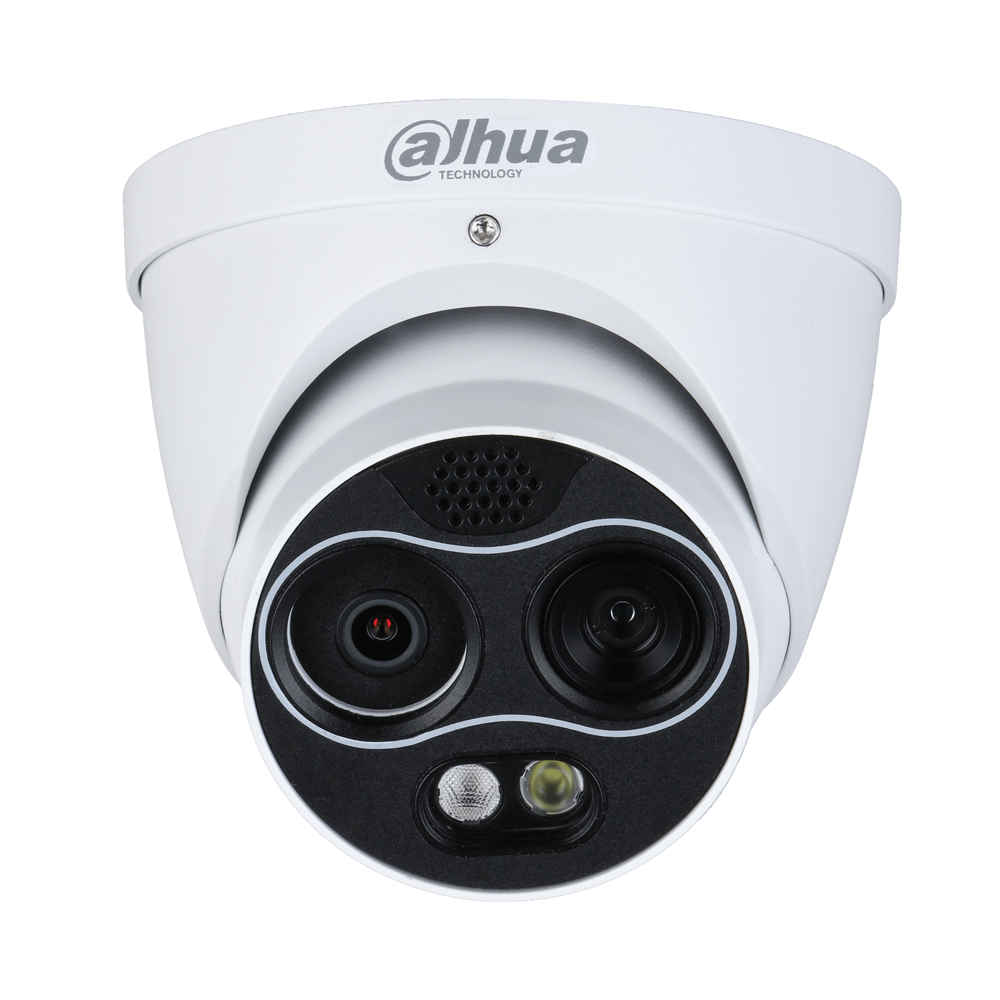

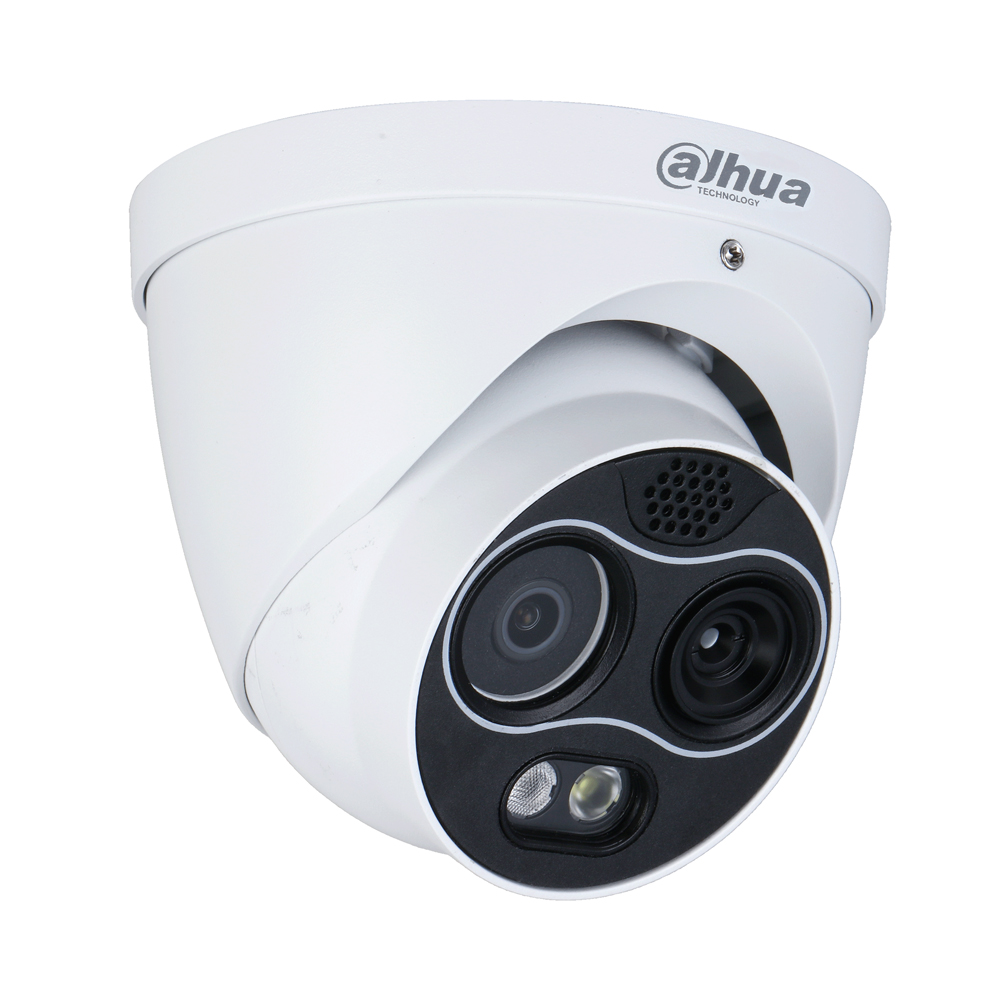

Dahua 4MP WizSense Hybrid Thermal Network Eyeball Camera (POE)

Product Description

Specifications

Model Number: TPC-DF1241

Thermal
Detector Type	Vanadium Oxide Uncooled FPA
Max. Resolution	256 × 192
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Thermal Sensitivity (NETD)	< 50 mK (@f/1.0, 25 Hz, 300 K)
Focal Length	2 mm	3.5 mm		7 mm
Field of View	H: 87.8°, V: 63.8°	H: 50.6°, V: 37.8°		H: 24°, V: 18°
Close Focus Distance	0.3 m (0.98 ft)	0.5 m (1.64 ft)		1.0 m (3.28 ft)
Effective Distance Human (1.8 m × 0.5 m)	D: 83 m (272 ft) R: 21 m (69 ft) I: 11 m (36 ft)	D: 146 m (479 ft) R: 38 m (125 ft) I: 19 m (622 ft)		D: 292 m (958 ft) R: 75 m (246 ft) I: 38 m (125 ft)
Effective Distance Vehicle (4.0 m × 1.4 m)	D: 222 m (728 ft) R: 55 m (80 ft) I: 27 m (89 ft)	D: 389 m (1276 ft) R: 97 m (318 ft) I: 49 m (161 ft)		D: 778 m (2552 ft) R: 194 m (636 ft) I: 97 m (318 ft)
Aperture	F1.0
Digital Detail Enhancement (DDE)	Yes
Digital Zoom	16×
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
Image Flip	90°; 180°; 270°
Color Palettes	18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Globow; Iconbow1; Iconbow2, etc.)
Fusion Mode	3 (Warm color; cool color; Ironred)
Visible
Image Sensor	1/2.7'' CMOS
Max. Resolution	2336 × 1752
Pixel	4 MP
Electronic Shutter Speed	1/30000 s–1 s
Min. Illumination	Color: 0.05 lux Black & white: 0.005 lux0 lux (IR on)
IR Illumination Distance	≥30 m (98.43 ft)
IR Illuminator On/Off Control	Auto; Manual
Focal Length	2 mm	4 mm		8 mm
Aperture	F2.2	F1.6		F2.0
Field of View	H: 94° V: 72° D: 116°	H: 71.2° V: 52° D: 92.6°		H: 33.4° V: 25° D: 41.9°
Focus Control	Fixed
Close Focus Distance	0.3 m (0.98 ft)	1.0 m (3.28 ft)		2.5 m (8.2 ft)
Day/Night	Auto (ICR); Color and B/W
BLC	Yes
WDR	DWDR
HLC	Yes
White Balance	Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
S/N Ratio	≥ 55 dB
Region of Interest (RoI)	Yes
Image Flip	90°; 180°; 270°
Exposure Compensation	Yes
Intelligence
General Intelligence	Tripwire, Intrusion
Advanced Intelligence	Fire Detection & Alarm Cold & Hot Spot Trace Human & Vehicle ClassificationSmoking DetectionCall Detection
Video and Audio
Video Compression	H.265; H.264M; H.264H; H.264B; MJEPG
Resolution	Thermal: Main Stream: 1280 × 960 (1.3M) ; XVGA (1024 × 768) ; VGA (640 × 480) ; 256 × 192, 1280 × 960 by default Sub Stream: VGA (640 × 480) ; 256 × 192, 256 × 192 by default Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576), 2336 × 1752 by default Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288), 352 × 288 by default
Frame Rate	Thermal 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM
Network
Protocol	HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Edge Storage	Micro SD card (256 G)
Interoperability	ONVIF; CGI
Browser	IE: IE8 and the later, and explorer with IE core Google: 42 and the earlier Firefox: 42 and the earlier
User/Host	10
Security	Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Certification
Certifications	CE: EN55032:2015; EN61000-3-2:2014 FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014
Port
Network	1 × 10 M/100 M Ethernet port (RJ-45)
Audio Input	1
Audio Output	1
Alarm Input	1
Alarm Output	1
RS-485	1 pair
Power
Power Supply	12 VDC, 1.2 A (±20%) PoE
Power Consumption	Basic: < 6.5 W (LED off) Max: < 13 W (LED on, heater on)
Environment
Operating Temperature	–30°C to +60°C (–22°F to +140°F)
Storage Temperature	–30°C to +70°C (–22°F to ﹢158°F)
Operating Humidity	≤ 95%
Protection	IP67, anti-surge 6 kV, anti-elctrostatic 6 kV (touched by objects), anti-elctrostatic 8 kV (air)
Structure
Product Dimensions	122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")
Packaging Dimensions	155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")
Net Weight	≤ 0.85 kg (1.87 lb)
Gross Weight	≤ 1 kg (2.20 lb)
IVS Range
Focal Length		2 mm	3.5 mm		7 mm
Human (1.8 m × 0.5 m)		15 m	26 m		52.5 m
Vehicle (1.4 m × 4.0 m)		42 m	72.5 m		146.5 m
