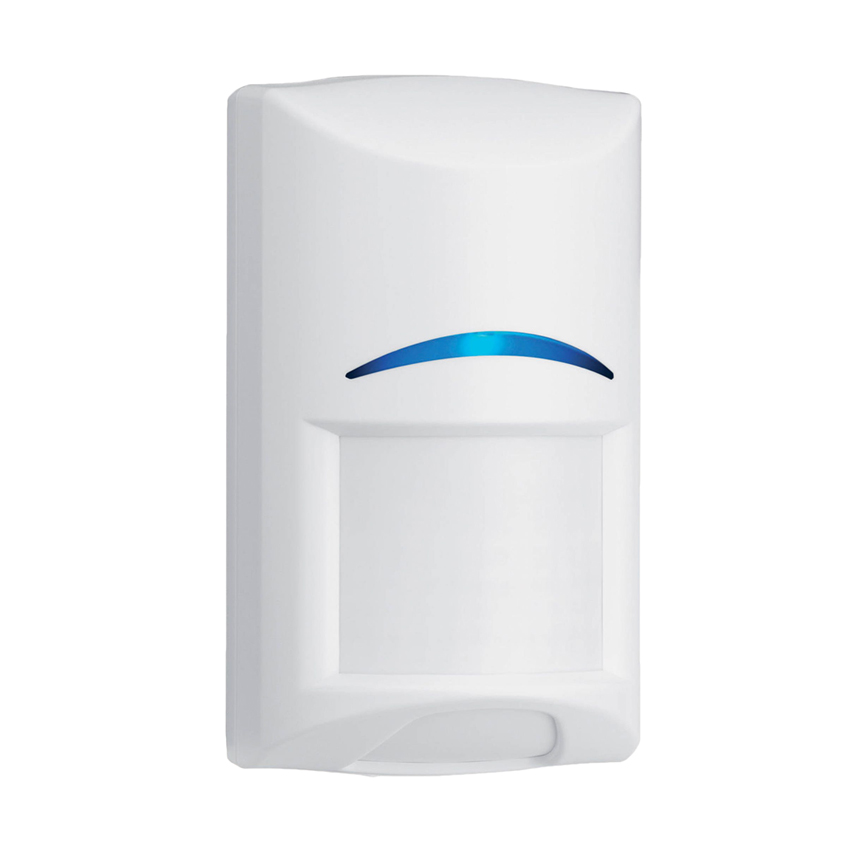

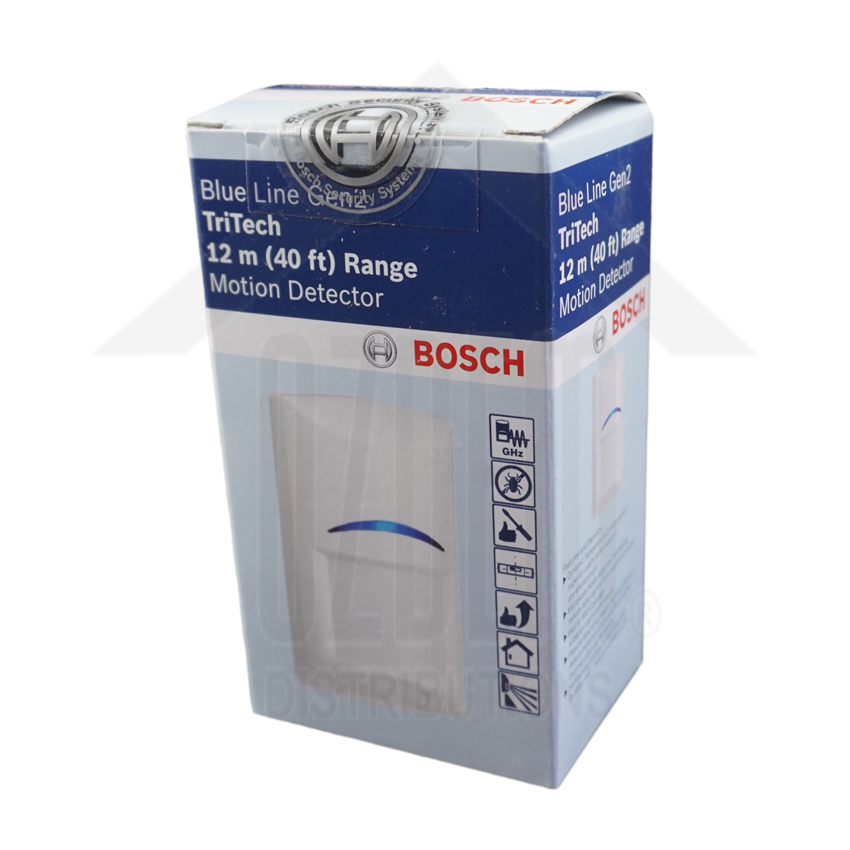

Bosch Gen2 Tri Tech Motion Detector PIR

Product Description

Specifications

Model Number: ISC-BDL2-W12G

Electrical
Current (alarm/standby)	10 mA at 12 VDC
Voltage (operating)	9 VDC to 15 VDC
Environmental
Relative Humidity	0 to 95%, non-condensing For UL Listed product installations 0 to 85%, non-condensing
Temperature (operating)	G models = - 20°C to + 55°C (- 4°F to + 131°F) GE models = - 10°C to + 55°C HE models= + 5°C to + 40°C UL/ C-UL= 0°C to + 49°C (+32°F to + 120°F)

Mechanical
Colour	white
Dimensions	105 mm x 61 mm x 44 mm (4.2 in. x 2.4 in. x1.7 in.)
Material	High-impact ABS plastic
Outputs
Relay	Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
Tamper	Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W Connect tamper circuit to 24-hour protection circuit.
