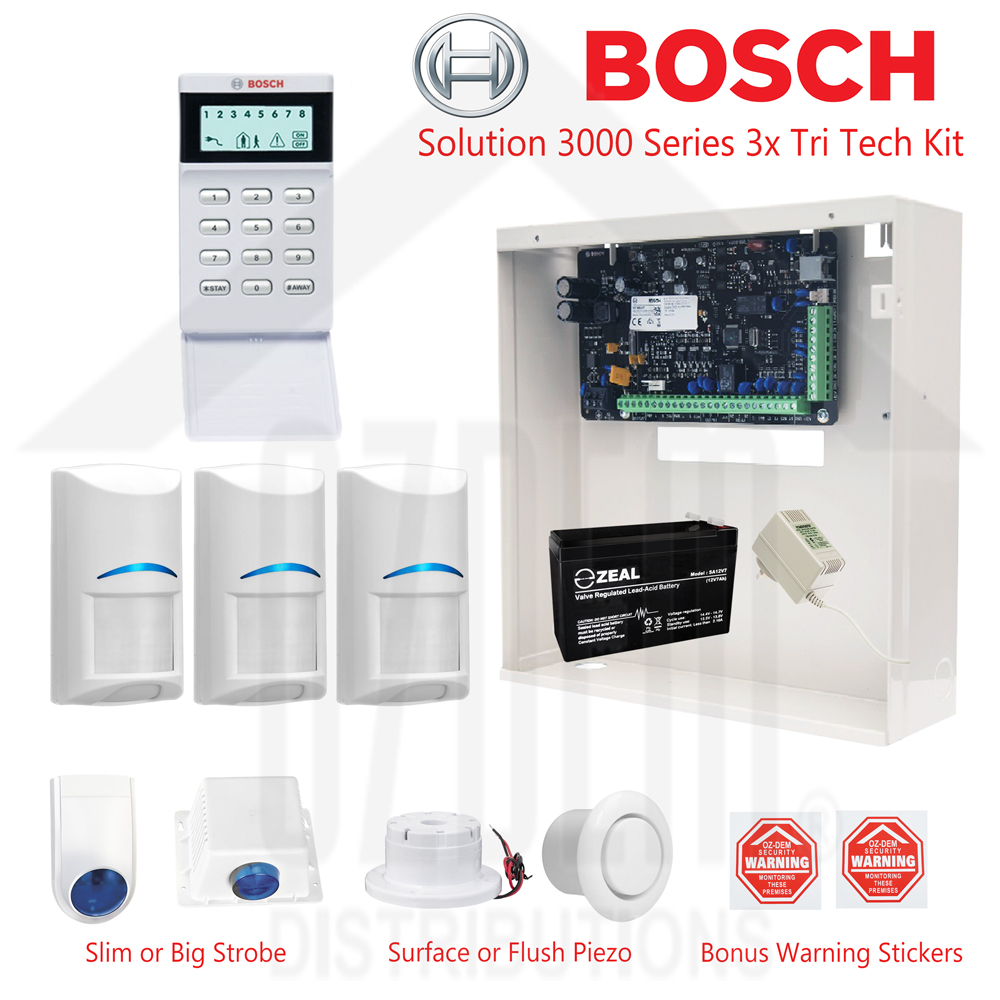

Bosch 3000 Series (16 Zone) Alarm Kit with Icon Keypad, 3x Bosch Gen2 Tri Tech PIRS (Non Pet Friendly) and Accessories

Product Description

Specifications

Model Number: S3K-LCD-TRITECH-3

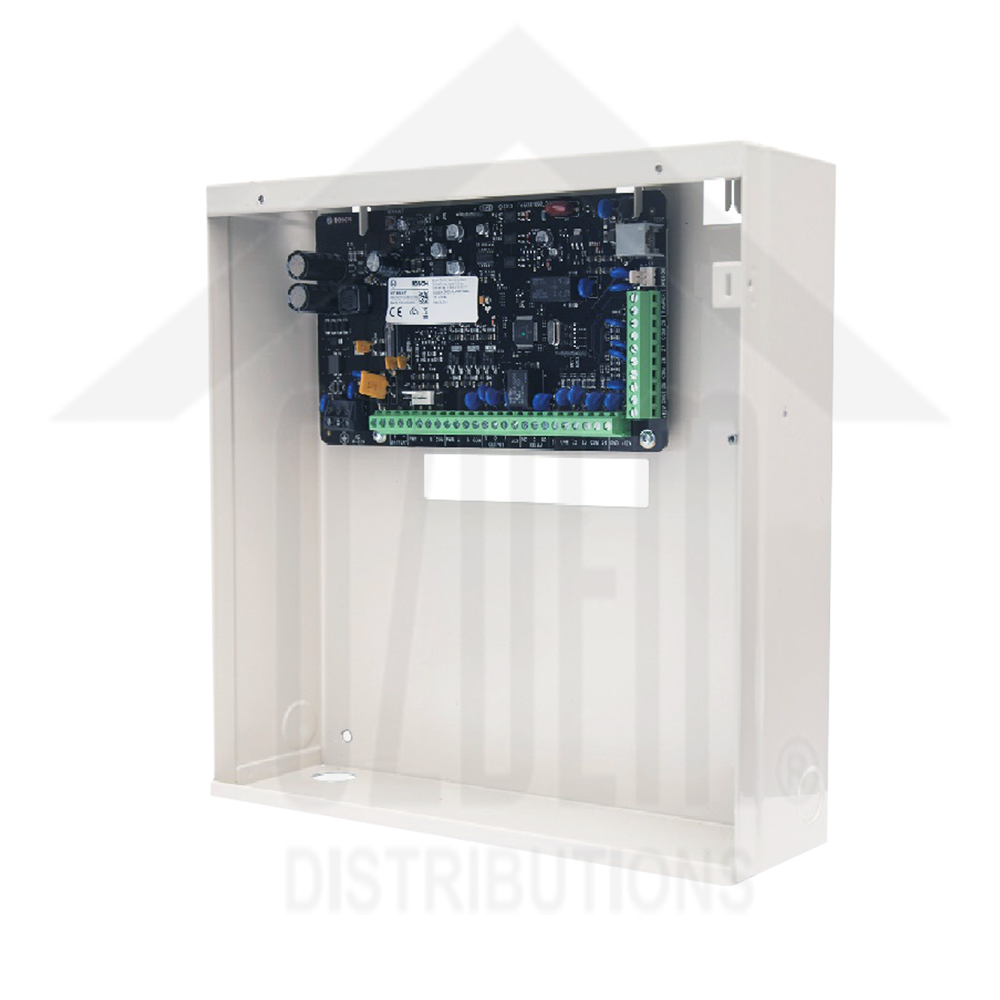

Solution 3000 Series Panel

Power Requirements

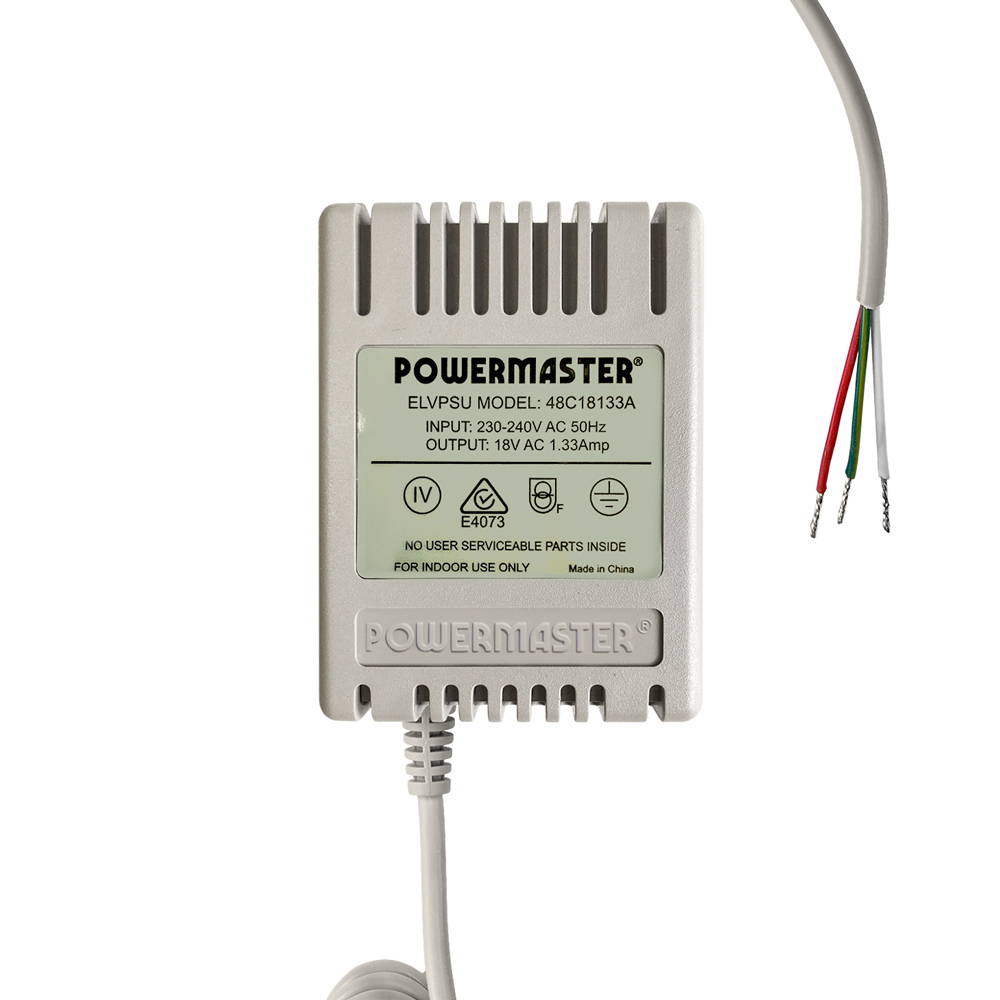

Primary	250 VAC / 18 VAC at 1.3A supplied by TF008 Plug Pack

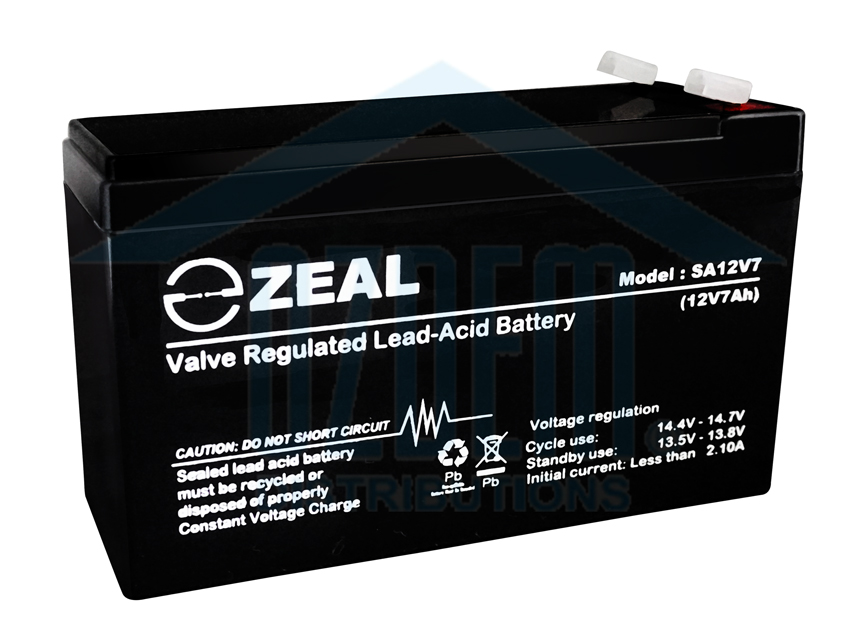

Secondary	12 VDC, 6.5Ah from rechargeable sealed lead/ acid battery
Communications
Communications	CID, SIA, Email, Domestic Dialing, CSV-IP, Push Notification Requires B426-M IP Communications Module or B450-M Universal Communications Module
Environmental Considerations
Temperature	0o to +45oC
Relative Humidity	10% to 95% non-condensing
Enclosure
Dimensions (H x W x D) (packed in carton)	306 x 262 x 84mm
Weight	2.5kg
Warranty	3 years

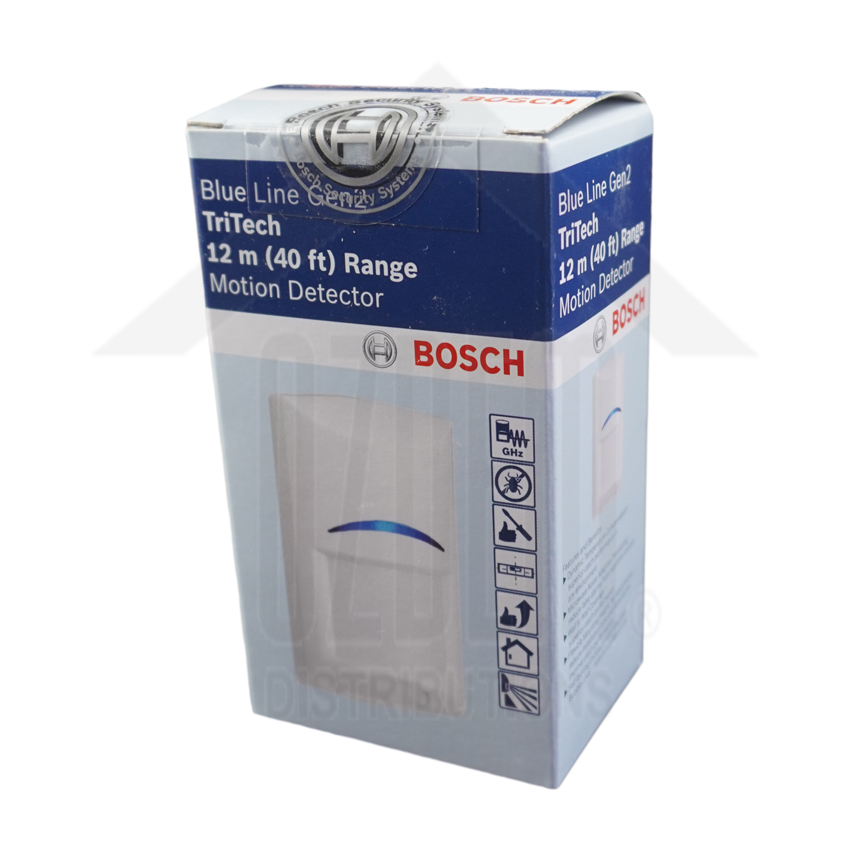

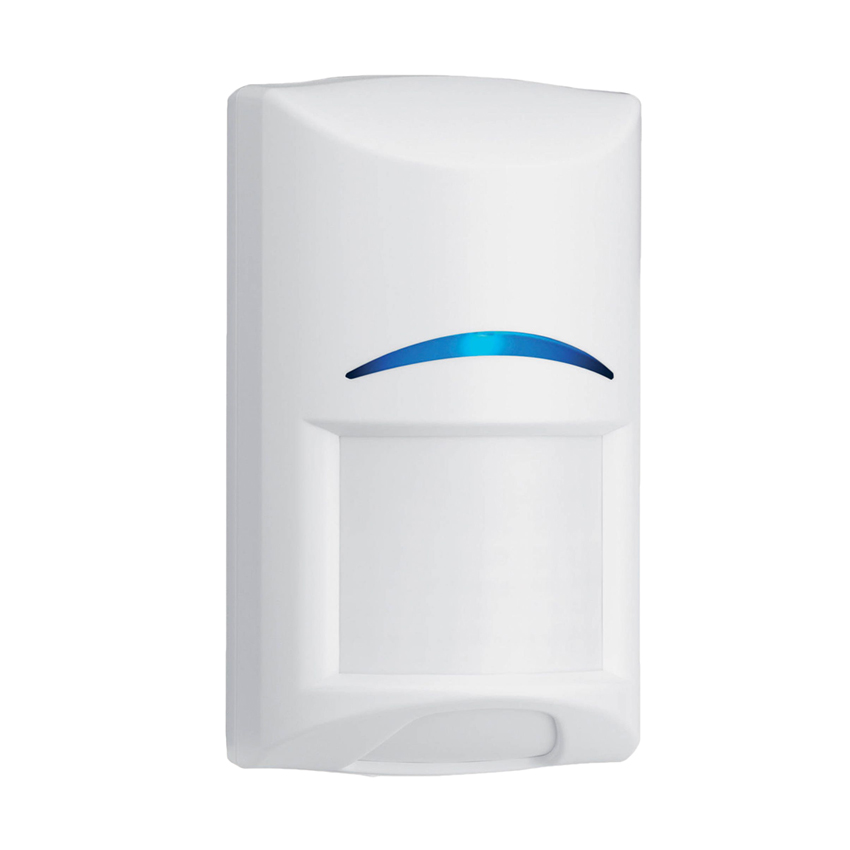

Bosch Blue Line Gen2 Tri Tech PIR Motion Detector (ISC-BDL2-W12G)

Electrical
Current (alarm/standby)	10 mA at 12 VDC
Voltage (operating)	9 VDC to 15 VDC
Environmental
Relative Humidity	0 to 95%, non-condensing For UL Listed product installations 0 to 85%, non-condensing
Temperature (operating)	G models = - 20°C to + 55°C (- 4°F to + 131°F) GE models = - 10°C to + 55°C HE models= + 5°C to + 40°C UL/ C-UL= 0°C to + 49°C (+32°F to + 120°F)

Mechanical
Colour	white
Dimensions	105 mm x 61 mm x 44 mm (4.2 in. x 2.4 in. x1.7 in.)
Material	High-impact ABS plastic
Outputs
Relay	Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
Tamper	Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W Connect tamper circuit to 24-hour protection circuit.

Bosch ICON Keypad (IUI-SOL-ICON)

Dimensions	132 mm x 74 mm x 25 mm
Voltage	12 VDC norminal
Temperature (storage)	0°C to +50°C
Relative humidity	20% to 90%, non-condensing
